Single-Disk Depth Adjustment

CQ190410-UN-31AUG99

CQ190421-UN-30NOV04

The depth control gauge wheel can be set at any one of three depths.

Planting conditions determine the best position that will provide the fertilizer in the most effective manner.

Position of Gauge Wheel	Disk depth
Maximum (A)	100 mm
Medium (B)	80 mm
Minimum (C)	60 mm

NOTE: The fertilizer concentration varies according to ground conditions. In loose and dry soil the furrow will cause the fertilizer to be delivered in a vertical band. In wet or compact soil the furrow will cause the fertilizer to be more concentrated at the furrow base.

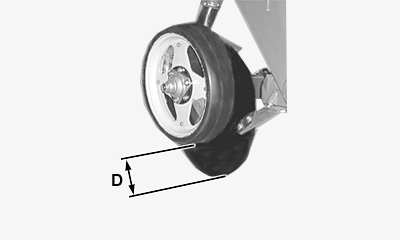

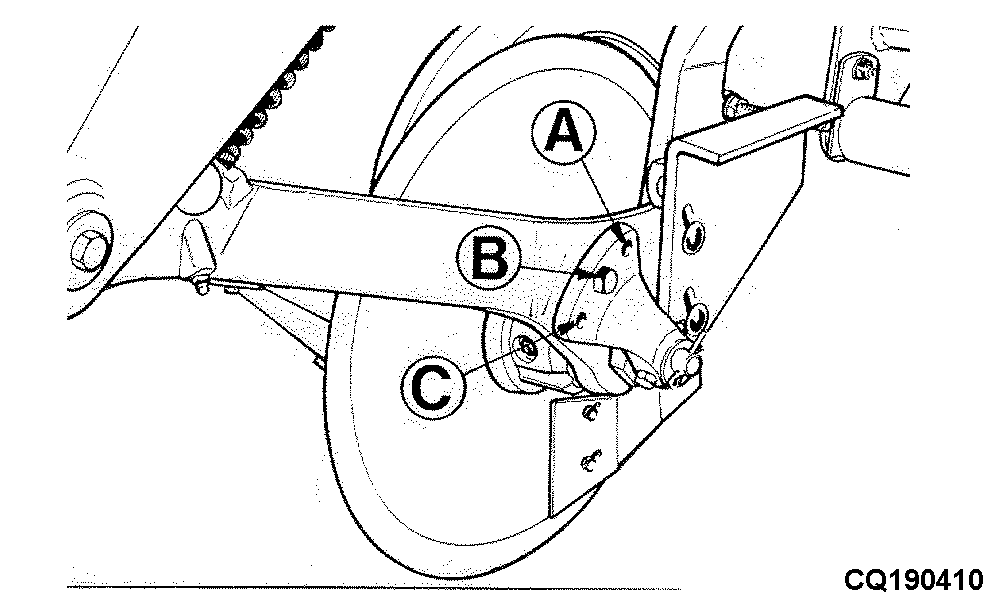

To adjust the depth (D), place bolt in position (A), (B) or (C), according to requirements.
