Single-Disk Scraper Adjustment

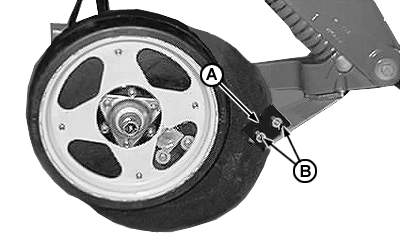

CQ190540-UN-14MAY08

The function of the fertilizer furrow opener disk scraper (A) is to maintain clean the area of the furrow opener disk that comes into contact with the gauge wheel, avoiding plugging that may lower the performance of the assembly.

Periodically check adjustment and correct it if necessary.

To adjust, loosen bolts (B), move scraper in desired direction and retighten bolts (B).

NOTE: The scraper should touch the surface of the cutter disk slightly.
