Fertilizer Furrow Opener with Offset Double-Disks

CQ236550-UN-07MAR05

CQ236560-UN-07MAR05

After the first few hours of operation and every 100 hours thereafter, check the play of disk hub bearings and adjust, if necessary.

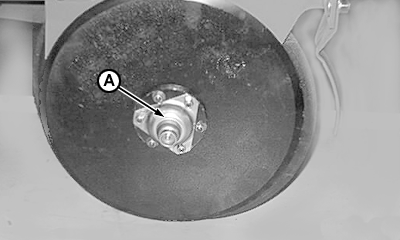

To adjust bearings play, remove Veda System cover (A).

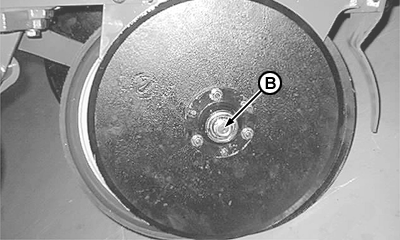

Tighten bolt (B) to adjust bearing play.

NOTE: A torque of 127.5—147 Nm (94—108.5 lb-ft) must be applied to nut (B). The disk should rotate with the application of slight force.

To reinstall, perform the reverse procedure.
