Cleaning CCS Fan Radiator

CQ224481-UN-04MAR05

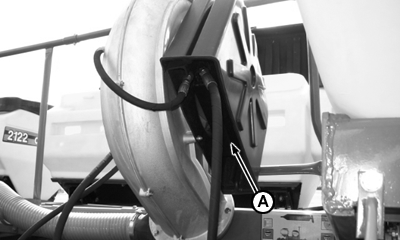

The CCS fan radiator (A) can become plugged with dirt, dust and seed treatment residue. If the radiator becomes partially blocked this could lead to an increase in oil temperature and the loss of tank pressure.

Remove the protective covering and clean the CCS fan radiator with a cloth or a small brush, whenever necessary.
