Preparing for Storage

CQ224280-UN-18JUN04

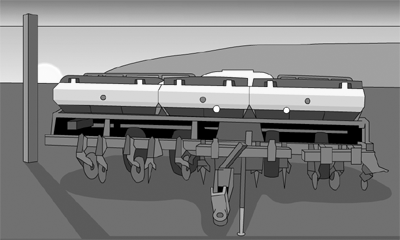

Covered storage area

CQ224281-UN-18JUN04

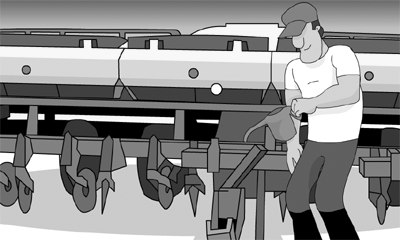

Lubrication

1. Completely clean machine and store in a covered and dry area. Place a plank under the offset disks and/or hoes to prevent them from entering into soil or floor.

2. Completely lubricate machine. See “Lubrication and Service” section.

3. Check to see if there are loose or damaged components. Replace and/or tighten as required.

4. Cover offset disks and/ or furrow openers in a layer of grease or oil and then lower onto a plank for storage.

5. Repaint exposed metallic areas, if necessary, to prevent rust.

6. Apply grease to exposed area of all hydraulic cylinder rods.

7. Before disconnecting hydraulic hoses, release pressure in all lines. This is done by lowering all planting rows to ground. Shutdown tractor engine. Move SCV lever forwards and backwards three times to release system pressure.

8. Place covers on the ends of the hydraulic hoses and place them in their supports on the planter.

9. Dry clean the seed tank using compressed air.


   TS266-UN-23AUG88

   CAUTION: Reduce the compressed air pressure to less than 2 bar (30 psi) to clean the tanks. Move all people away from machine. Use protective equipment, including goggles.

   IMPORTANT: Cleaning with compressed air is recommended, to prevent the formation of sticky deposits (caused by contact with water) in the air lines.

---




10. Clean the fertilizer meters and tanks with water jets ensuring that no fertilizer can form a crust on the bottom of the tank.

    IMPORTANT: Remove fertilizer metering augers. Clean and lubricate to prolong service life.

    Place dome on meters.

    Leave machine to dry in sum immediately after washing.

    NOTE: Any waste matter in the tanks should be washed out with pressurized water jets.

11. Lubricate all of the machine's chains and transmissions to prevent rusting by the humid air. Rusting tends to stiffen chain links causing them to become less flexible and the machine as a whole to become less maneuverable.

12. Adjust tires according to adjustment table.
