Replacement of Planting Unit Scrapers

CQ279258
CQ279258-UN-20NOV06

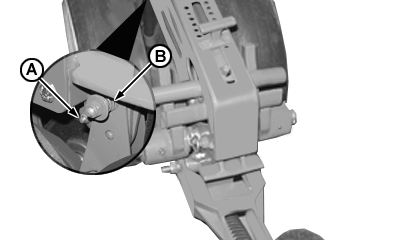

  1. Remove bolts (B) fixing scraper to bracket.
  2. Replace scraper.

To install, follow this procedure in reverse order.

The purpose of bolt (A) is to misalign scrapers to compensate variation when disks are offset.

NOTE: The edge of the scraper must be at a tangent to the furrow opener disk cutting edge.
