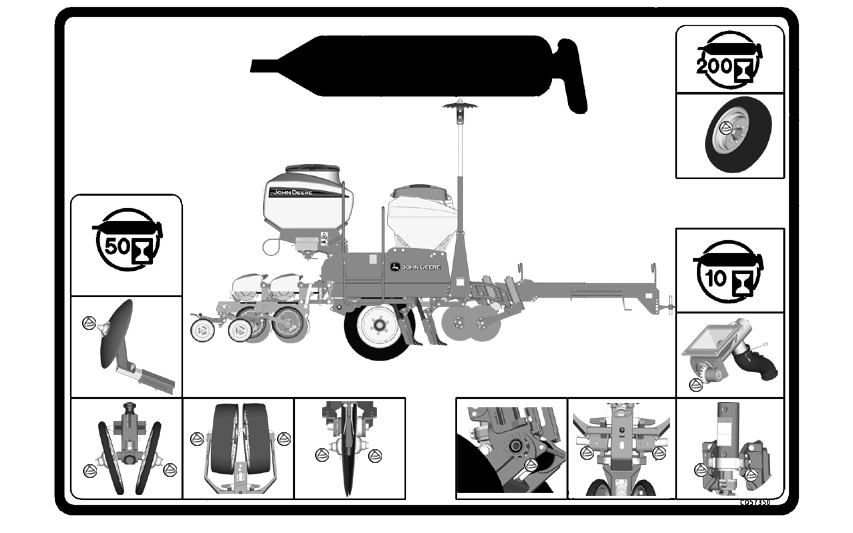

Lubrication Points—General

CQ224260-UN-15FEB05

LUBRICATION POINTS - EVERY 10 HOURS:

• Calibrating wheel arm pivot
• Cylinder pivot
• Wheel clutches
• Fertilizer meter bearing
• Wheel support pivot.

LUBRICATION POINTS - EVERY 50 HOURS:

• Disk furrow opener for seeds bearing
• Closing wheel bearing
• Gauge wheel bearing
• Row marker bearing

LUBRICATION POINTS - EVERY 200 HOURS:

• Wheel hub bearing
