Adjustment of Play between Offset Disk Furrow Openers

CQ269010
CQ269010-UN-24MAR06

CQ252210
CQ252210-UN-21SEP05

Offset disk furrow openers suffer wear during operation. Keep disks adjusted in a way they slightly touch each other.

  1. Remove disks by loosening nuts (B).

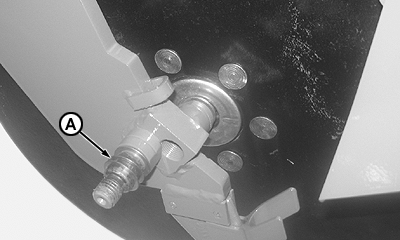

  2. Remove the necessary amount of washers (A) so that the disks are adjusted.

    NOTE: After performing adjustment (X) you must be able to turn disks without major effort.

OU12212,00000E9-19-20081015
