Adjustment of Cutter Disk Scraper

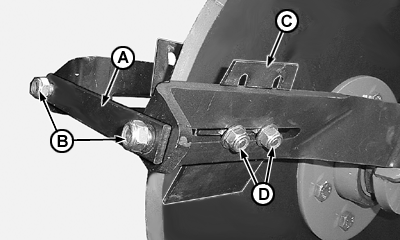

  1. Release peg (A) by removing bolts (B).

    CQ240070
    CQ240070-UN-20APR05

  2. Loosen bolts (D) and adjust the contact between the scraper (C) and the cutter disk.
  3. Tighten bolts (D) and (B) and repeat the “Checking Resistance Set by Scraper on Cutter Disk” procedure.
