Checking Resistance Set by Scraper on Cutter Disk

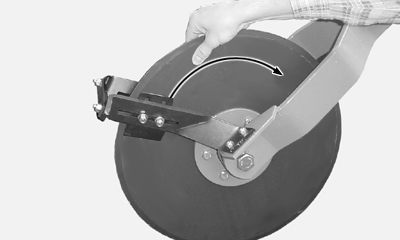

  1. Manually check the rotation of the cutter disk.

    CQ240050
    CQ240050-UN-20APR05

  • If the cutter disk easily rotates against the resistance supplied by the scrapers, mount all other scrapers.
  • If the cutter disk does not rotate or it only rotates on the application of extreme levels of force, follow the procedure specified in the “Adjustment of Cutter Disk Scraper” section.

OU64006,0000020-19-20050418
