Compatible Disks with the Fertilizer Furrow Closing Wheel Assembly

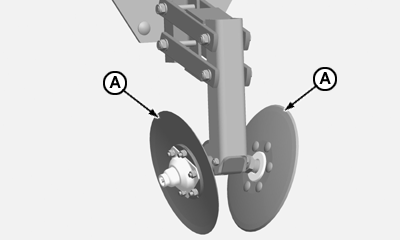

1. Flat concave disks (A) are an option for planting in soils that are exclusively clay with a large number of clots, high straw content (low and not very concentrated) with or without significant humidity levels.


   CQ241970-UN-13MAY05

   NOTE: This system is not recommended for soft and gravelly soils.

---

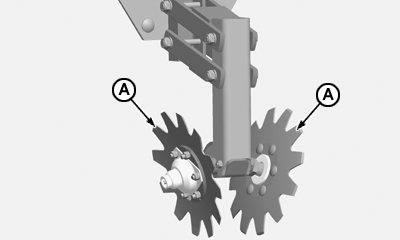

2. Toothed concave disks (A) are an option for planting in soils that are exclusively clay with a large number of clots, high straw content (dense and very concentrated) with or without significant humidity levels.


   CQ241980-UN-13MAY05

   NOTE: This system is not recommended for soft and gravelly soils.

   Mount the disks that are most suitable to the ground conditions, following the “Wheel Replacement” procedure.

---
