Adjusting the Distance Between Fertilizer Furrow Closing Wheels

CQ241910
CQ241910-UN-12MAY05

CQ241920
CQ241920-UN-12MAY05

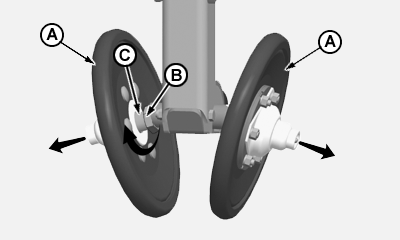

  1. Loosen nuts (B) and move wheels (A) away from each other by unscrewing from axle (C).

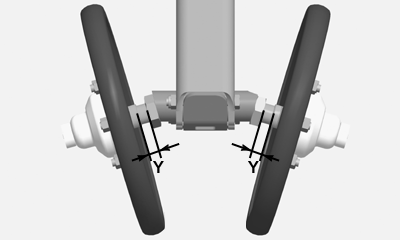

    IMPORTANT: Do not exceed the specified maximum distance (Y).

    ItemMeasurementSpecification
    Maximum distance (Y)Distance15 mm (0.59 in.)

  2. After achieving the required spacing, fix assembly in place with nut (B).

    NOTE: This adjustment permits a better flow of straw between the wheels. It is appropriate for conditions of high straw content.

OU64006,000004B-19-20050516
