Removal of One of the Fertilizer Furrow Closing Wheels

CQ241930-UN-12MAY05

CQ241990-UN-13MAY05

Wheel assembly action

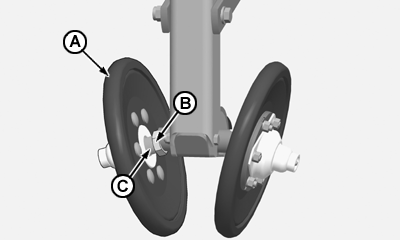

1. Remove wheel (A) by loosening nut (B) and unscrewing from axle (C). This adjustment causes the wheel to press against and cause the collapse of one of the furrow walls. NOTE: This adjustment is appropriate for ground where the straw content is so high that the “Adjusting the Distance Between Fertilizer Furrow Closing Wheels” procedure is not sufficient to impede the accumulation of straw.
