Adjusting Row Cleaner Angle

CQ248790-UN-05AUG05

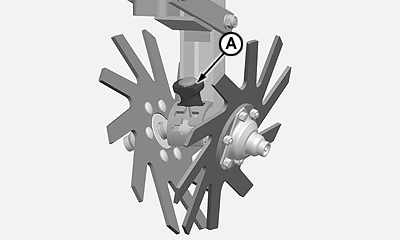

Adjust using lever (A). This adjustment allows for control of straw spreading distance to close or distant from furrow.

The lower you set lever (A), the farther straw will spread.

NOTE: Adjust so that residue is not thrown into adjacent rows.
