Inspecting Wheel Support Bolt Tightening Torque - B-Type

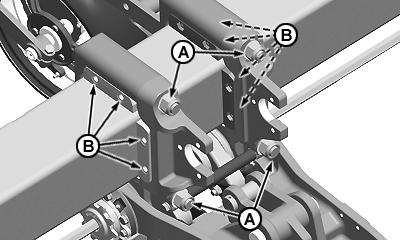

CQ296611-UN-14AUG13
A - Cap Screws
B - Cap Screws
Check torque of all wheel support bolts (A and B) during the first 10 operating hours and later every 50 hours, according to specifications.
| Item | Measurement | Specification |
| A | Torque | 765 N·m (564 lb.-ft.) |
| B | Torque | 137 N·m (101 lb.-ft.) |
|
OU92976,0000106-19-20130829 |
