Checking Wheel Bearings - A-Type

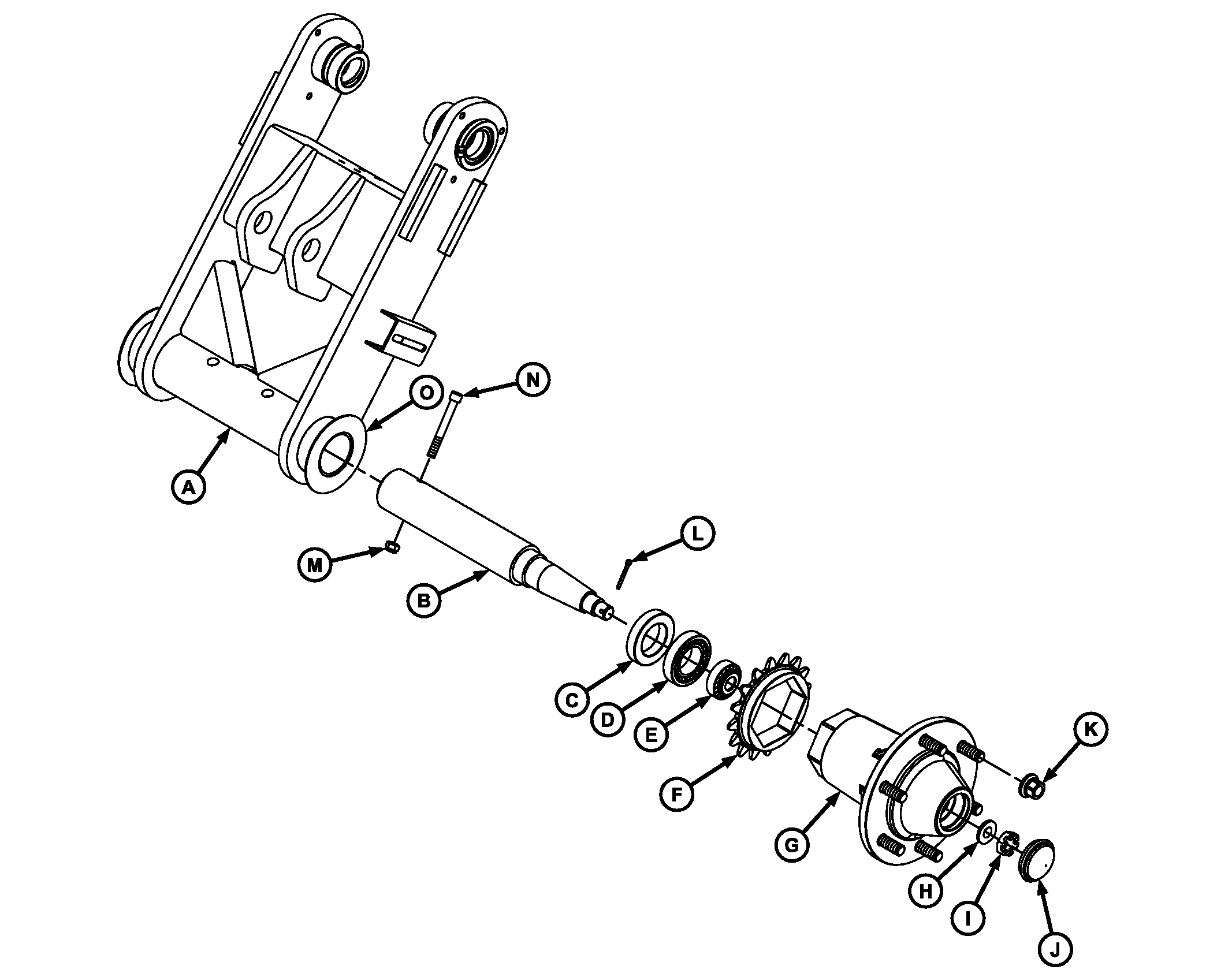

CQ289199-UN-03DEC10

A - Wheel Arm

B - Axle End

C - Retainer

D - Cone Bearing

E - Cone bearing

F - Sprocket

G - Hub Housing

H - Washer

I - Castle Nut

J - Cover

K - Nut

L - Roll Pin

M - Nut

N - Bolt

O - Washer

Wheel bearing adjustment should be carried out after the first 50 hours of operation, thereafter check for play every 100 hours.

Check for play pressing on wheels laterally. Adjust bearings as follows.

1. With planter empty and on level ground, raise machine high enough so that wheels do not touch the ground.

2. Loosen cotter pin (L) and castle nut (I).

3. Tighten nut (I) until existing bearing play is eliminated.

   IMPORTANT: Make sure you do not overtighten bearing, wheel should turn without effort, otherwise the bearing's service life will be reduced.

   NOTE: If it is necessary to replace bearings replace retainers and also grease of hubs.
