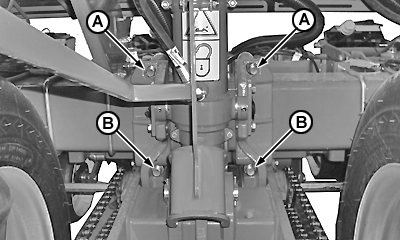

Inspecting Wheel Support Bolt Tightening Torque - A-Type
CQ289962-UN-21FEB13
A - Cap Screws
B - Cap Screws
Check torque of all wheel support bolts (A and B) during the first 10 operating hours and later every 50 hours, according to specifications.
| Item | Measurement | Specification |
| A | Torque | 568.8 N·m (419.5 lb.-ft.) |
| B | Torque | 764.9 N·m (764.9 lb.-ft.) |
|
OU92976,0000113-19-20130829 |
