Replacing Vacuum Meter Brush

1. Open vacuum meter.

2.

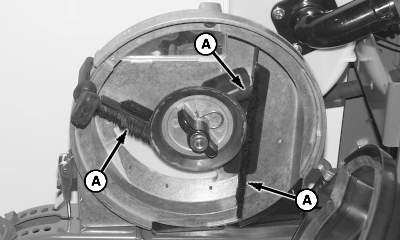

   A49838-UN-03DEC02

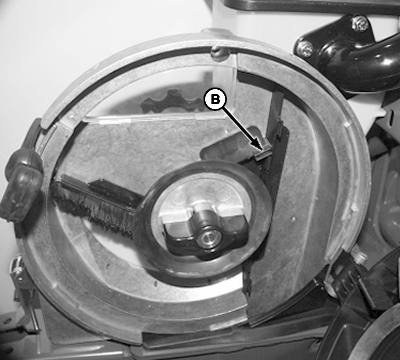

   A49839-UN-03DEC02

   A - Brushes

   B - Clamps

   Pull or slide mounted brushes (A) to remove them from clamps (B).

---




3. Install new brushes.
