Air Compressor Oil Change

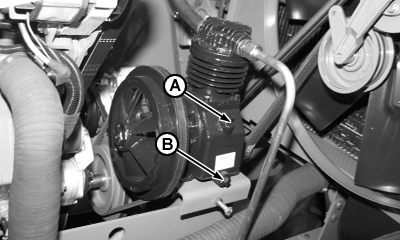

Open the filler and oil level plug (A) and drain plug (B), and bleed off oil into a suitable container.

Install and tighten drain plug (B).

Fill up with SAE 15W-40 oil.

Consult capacity in the "Specifications" section.

Check oil level with dipstick.

Oil level should be between the upper and lower marks on the dipstick.

A-Filler and oil level plug
B-Drain plug

AG,CO03622,2190 -19-24SEP05-1/1
