Replacing (Engine) Cooling Fan Belt

causym CAUTION: Shut off engine and remove key.

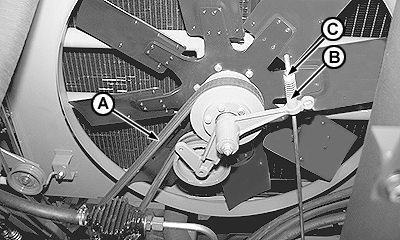

To remove belt (A), it is necessary to release spring (B) tension by loosening jam nut (C).

Remove pulley.

CQ247070

AG,CO03622,2202 -19-17AUG05-1/1
