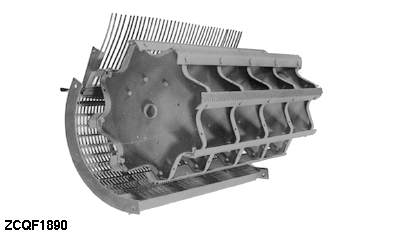

Cylinder and Bar Concave

Standard for the Basic Version

Recommended for harvesting soy, corn, wheat, oats, ryegrass, etc.

AG,GG05155,108 -19-03FEB99-1/3

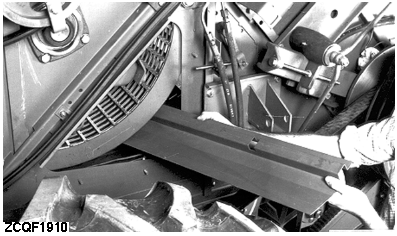

Harvesting Corn With Cylinder and Bar Concave

When harvesting corn, use special plates to close the bar cylinder and keep the ears from getting inside it. Also close the stone trap with its special cover to keep the ears from being deposited there. These components are part of the "Special Corn Kit".

AG,GG05155,108 -19-03FEB99-2/3

Harvesting Wheat With Cylinder and Bar Concave

For harvesting bracteiferous varieties of wheat, we recommend mounting one or two concave closing plates, which serve to increase the threshing action and avoid excessive husks bracteifers over the large pan and shoes, affecting the separation. These plates must also be used for harvesting barley and general pasture seeds.

NOTE: The two concave closing plates come with the combines that are fitted with a cylinder and bar concave.

AG,GG05155,108 -19-03FEB99-3/3
