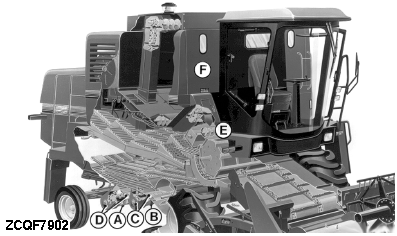

Grain Transport and Storage Unit

Components:

A - Tailing chute

B - Clean grain chute

C - Lower auger and clean grain elevator

D - Lower auger and tailings elevator

E - Upper tailings auger

F - Grain tank

AG,GG05155,122 -19-03FEB99-1/2

Operation

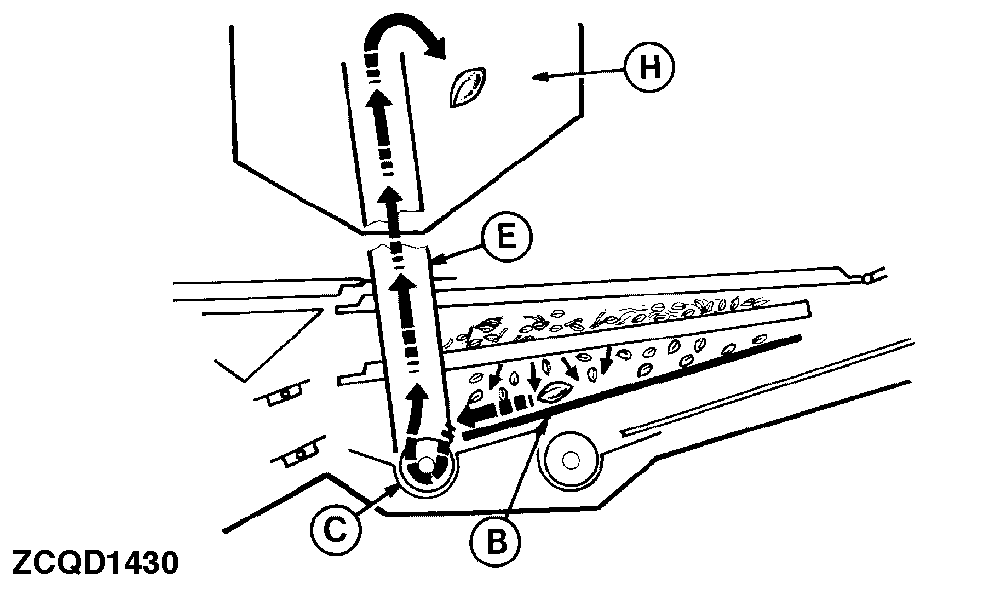

Clean Grains

The grains that go through the sieve drop onto the clean grain return chute (B). They are then carried to the lower clean grain auger (C), which carries them to the clean grain elevator (E), which carries them to the grain tank (H).

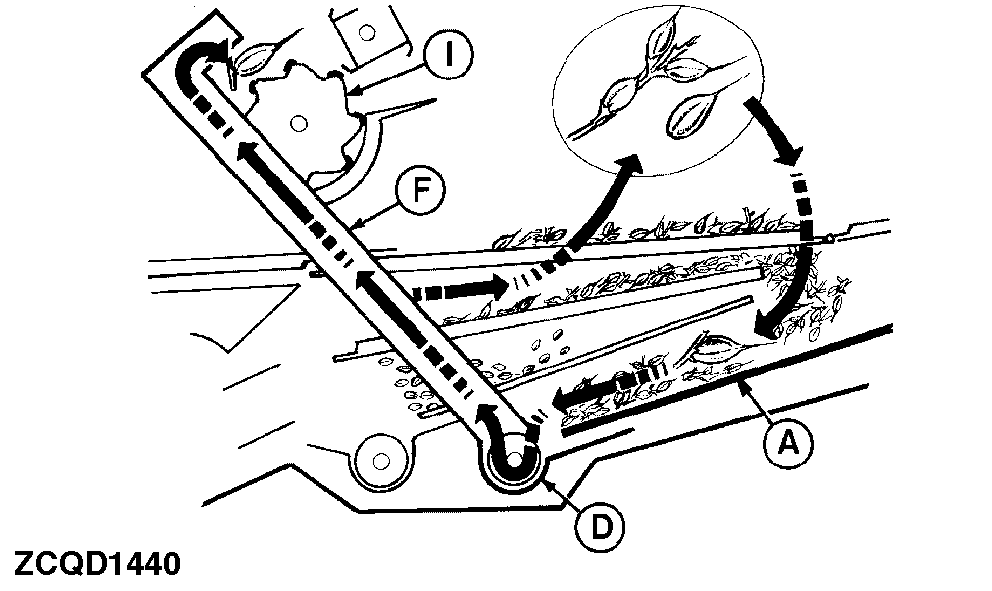

Tailing

The ends of sheaves, ears or pods that are not threshed, which go through the chaffer extension and those carried beyond the end of the sieve drop onto the tailing chute (A). In turn, these slide down to the lower tailing auger (D). This material is then carried by the tailings elevator (E) to the front part of the threshing cylinder (I) where it is threshed.

AG,GG05155,122 -19-03FEB99-2/2
