Chaffer Extension Angle

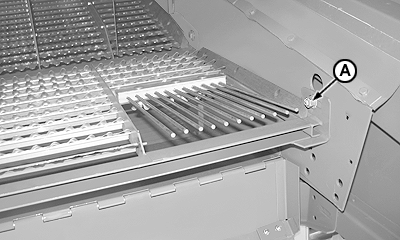

Loosen nuts (A) on both sides of chaffer extension.

- Lower: dry products and flat terrain.

- Higher: products that are difficult to shell (crops with weeds) or on hilly terrain.

CQ266570

AG,GG05155,165 -19-24FEB06-1/1
