Slope Master System for Hilly Terrain

When operating on hilly terrain a large quantity of material accumulates at the sides of the cleaning shoe and extension. This material exits the combine without being threshed, thereby increasing grain loss.

To avoid losses, openings located on both sides and behind the chaffer extension collect material not totally threshed.

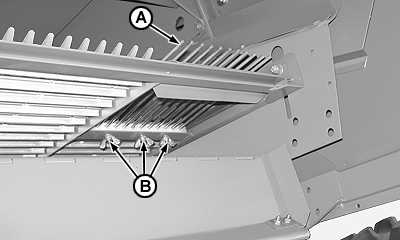

Depending on the inclination and harvesting conditions, regulate openings by adding or removing fingers (A), after loosening winged nuts (B).

NOTE: The combine is delivered from the factory with 11 fingers installed.
