Air Flow Direction

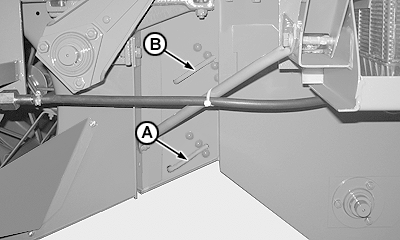

A - Lower Deflector

B - Upper Deflector

NOTE: For soybeans, wheat, rice and corn, generally use deflectors in the second position (see figure).

IMPORTANT: To facilitate adjustment, we recommend you first adjust the deflectors and then regulate fan speed.

AG,GG05155,169 -19-09FEB99-1/1
