Opening Left-Hand Side Shields

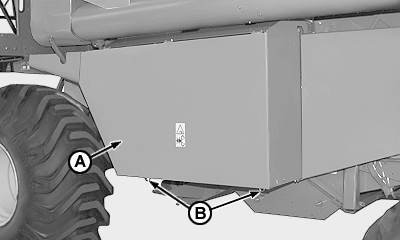

Left-Hand Side Shield

Pull clips (B) downward.

Protecting shield (A) will lock automatically after being completely suspended.

NOTE: To unlock it suspend it slightly with one hand. At the same time push support upwards with the other hand and unlock it.

AG,GG05155,184 -19-31MAR06-1/2

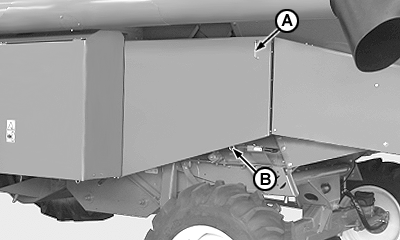

Straw Chopper Idler Pulley Shield

Release clip (B) and open shield (A).

AG,GG05155,184 -19-31MAR06-2/2
