Front Axle

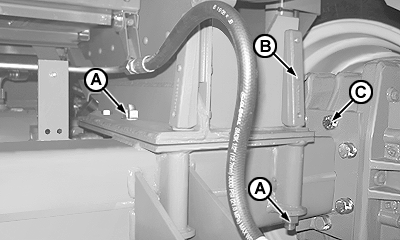

Retighten:

  • Nuts (A) to a torque of 300 N.m (30 kgm)(218 ft-lb).
  • Bolts (B) to a torque of 200 N.m (20 kgm)(145 ft-lb).
  • Bolts (C) of final drives to a torque of 250 N.m (25 kgm)(182 ft-lb).

NOTE: Carry out retightening during the first 25 hours of operation and then at the start of each harvesting season.

CQ266920

AG,GG05155,270 -19-24OCT03-1/1
