Rear Axle Toe-In

Whenever combine becomes difficult to steer or rear tires begin to wear unevenly, check rear wheel toe-in.

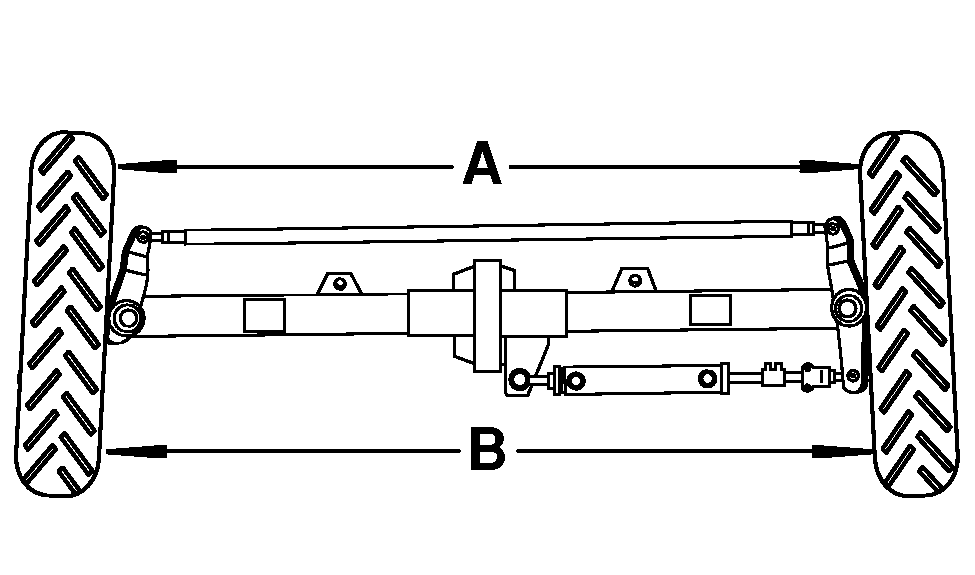

2. Mark a point at the upper center part of each tire. Measure distance (A).

3. Drive combine half turn back (180°), that is, marks on tires are now at lowest part of wheel.

4. Measure distance (B). It should be 10 mm (0.4 in.) bigger than distance (A).

5. To adjust, loosen locknuts at both ends of tie rod and adjust tie rod length.

A-Distance
B-Distance

AG,GG05155,271 -19-11JUL07-1/2

Combine with four wheel drive:

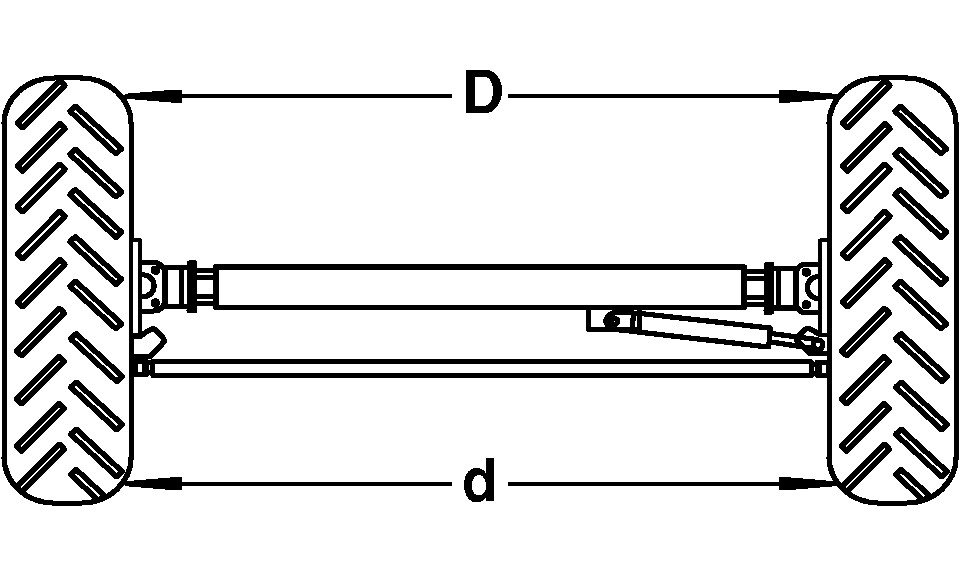

Distances (D and d) must be equal.

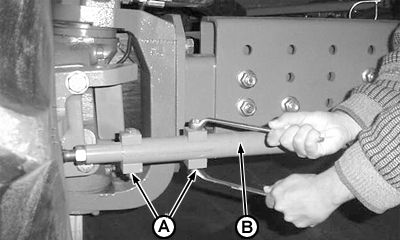

Adjust by loosening bolts (A) of steering rod (B).
