Replacing Fuses

IMPORTANT: Never use fuses of a higher capacity than the indicated. If fuses blow too often, there must be some problem in the electric circuit. In this case, contact the nearest John Deere Dealer.

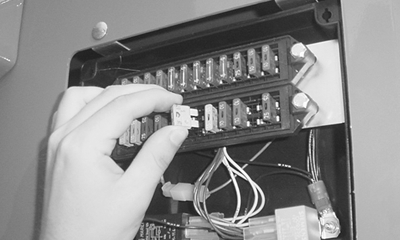

NOTE: To remove a fuse or a relay, force it sideways as shown in the figure.

The fuses are color coded to represent their correct current capacity (amps). See the table:

Color Current (Amps)
Blue 15 A
Red 10 A
Brown 7.5 A
Yellow 5 A
