Transmission from Beater to Feeder House

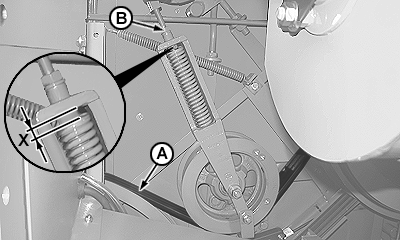

IMPORTANT: If the transmission is not engaged, double belt (A) remains without tension.

If the transmission is engaged, double belt (A) should be well tensioned. Distance (X) should measure 16-20 mm (0.63-0.79 in.). Check and adjust with engine turned off.

Adjust belt turning nut (B).
