Tooth Concave Closure Plates

De-awning plates are recommended for some crops such as: barley, wheat and peas, when these crops present threshing difficulties.

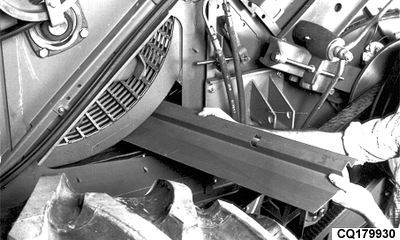

NOTE: It is not necessary to remove the concave to install the plates.

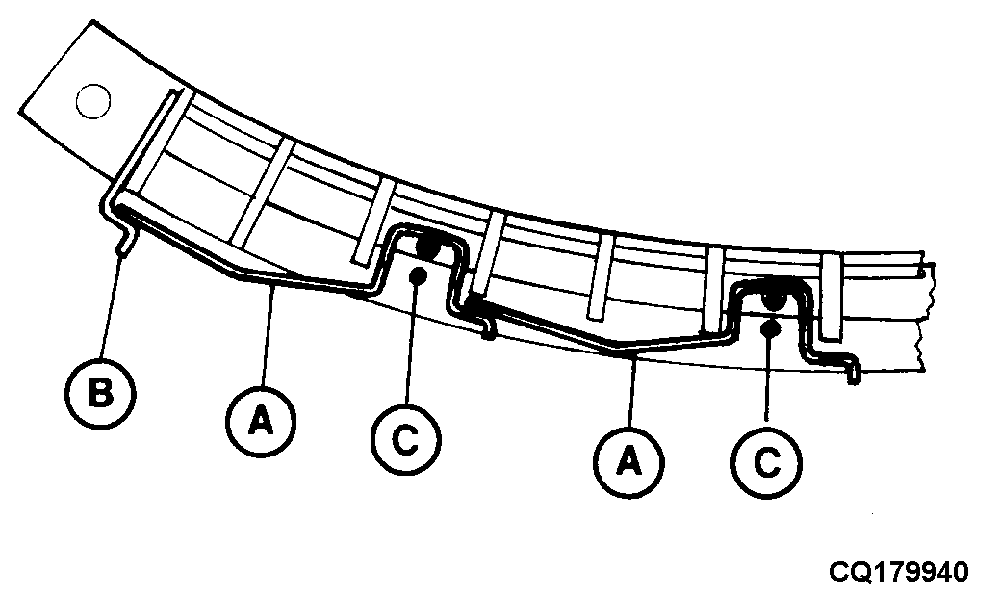

· After harvesting, clean chaff from front support (B) to ensure that de-awning plate fits properly in concave.

· Attach de-awning plate (A) with the mounting bolts (C).

· Use one plate to begin harvesting. Then install the second if needed.

AG,GG05155,320 -19-06MAR06-1/1
