Toothed Concave Closure Plates

Can be used for harvesting soy and beans.

NOTE: The concave does not need to be removed for their installation.

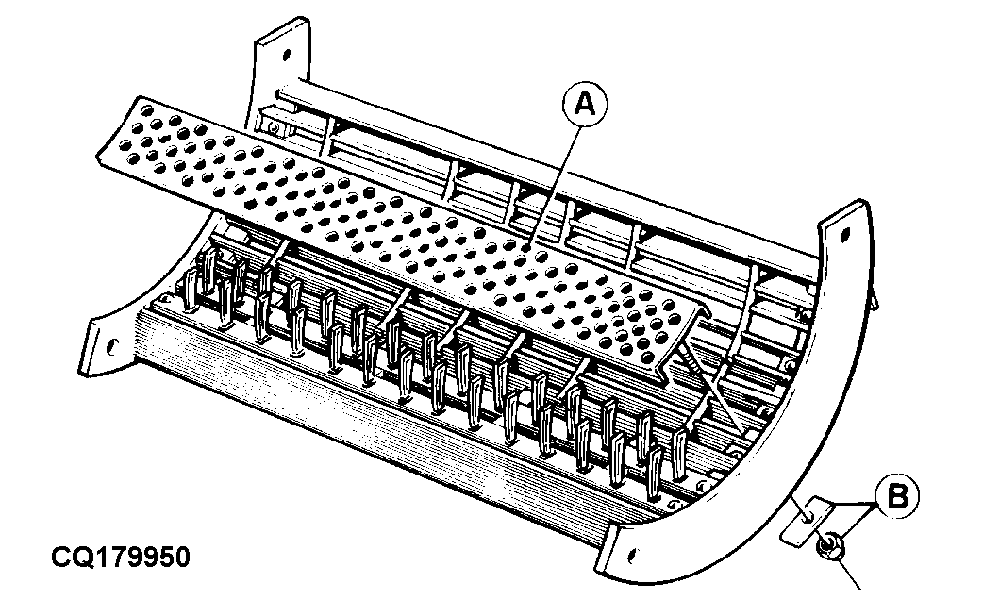

• Fasten the closure plate (A) with fasteners and nuts (B).
• Begin harvesting with one closure plate. Later on, and if needed, install the second one.

AG,GG05155,321 -19-24FEB99-1/1
