Slip Clutch

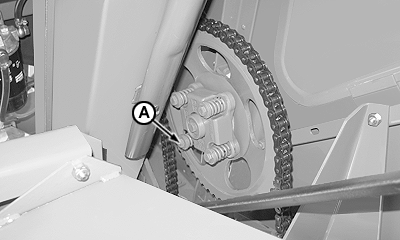

The straw walker is protected by a safety slip clutch. Adjust clutch through four bolts (A) tightening to specification.

Specification

Straw walker slip clutch bolts -Torque 40 N·m (29.5 lb-ft)

CQ267980

AG,GG05155,323 -19-30MAR06-1/1
