Unloading Auger Drive

The unloading auger is driven by a "U"-joint drive shaft located at its upper part.

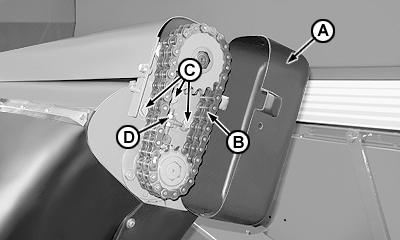

Open cover (A).

To adjust tension of chain (B), loosen nuts (C) and perform adjustment through nuts (D).

Retighten nuts (C) and reinstall cover (A).

AG,GG05155,343 -19-30MAR06-1/1
