Chain Transmission to the Cylinder

Replaces the belt transmission, and is indicated for when cylinder speeds of under 500 rpm are desirable. According to the pair of gears used, the following cylinder speeds are obtained:

Number of Gear Teeth
Beater Shaft-Cylinder Shaft		 Cylinder RPM Number of Chain Links
17-96 156 117
24-96 220 119
17-59 253 94
17-42 356 84
24-59 358 97
24-42 502 88

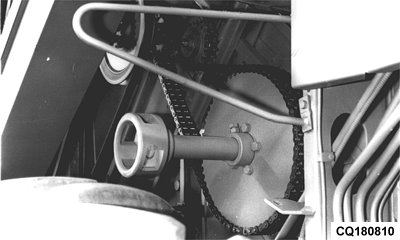

CQ180810

AG,GG05155,347 -19-24OCT03-1/1
