Straw Walker Type A - Cleaning Shoe

NOTE: Type A straw walker only has first and second stage cleaning shoes attached with bolts.

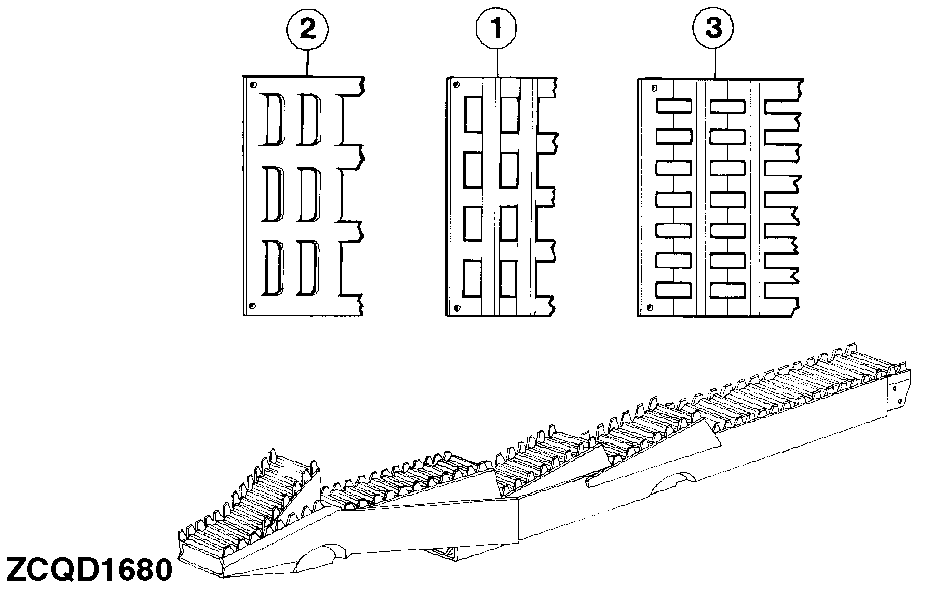

1. Straw walkers possessing grids with transverse rectangular openings are indicated for small grains such as rice, wheat, etc. They are standard on rice version combines.
2. Straw walkers possessing "frog mouth" type openings on the grid are indicated for large grains such as soybeans, corn and sorghum. They are supplied with the standard version combine.
3. Straw walkers possessing grids with longitudinal openings are especially suited for wheat and graminaceous crops.

On the three straw walker types the first and second stage cleaning shoes are attached with bolts and may be replaced for fast conversion for all types of products.

AS60558,0000E10 -19-12FEB08-1/1
