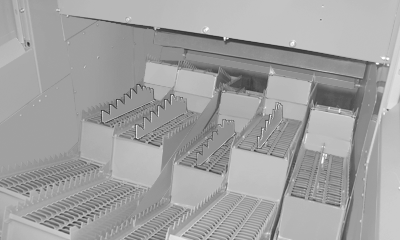

Straw Walker Fishbacks - Type A

Fishbacks optimize loose grain separation from chaff by reducing the speed at which straw moves over the straw walkers.

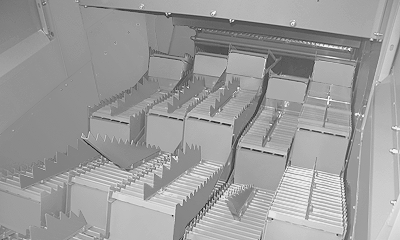

There are two types of fishbacks, a bigger and a smaller one. On rice version combines both types are installed alternately in all stages beginning with the 2nd. In the basic version only the small ones are installed in the 2nd stage.

NOTE: To avoid loss, more fishbacks can be installed for conditions where it is difficult to separate the grain from chaff (e.g., weedy soy beans).

AS60558,0000E11 -19-12FEB08-1/1
