Straw Walker Type B - Cleaning Shoe

NOTE: Type B straw walker only has third and forth stage cleaning shoes attached with bolts.

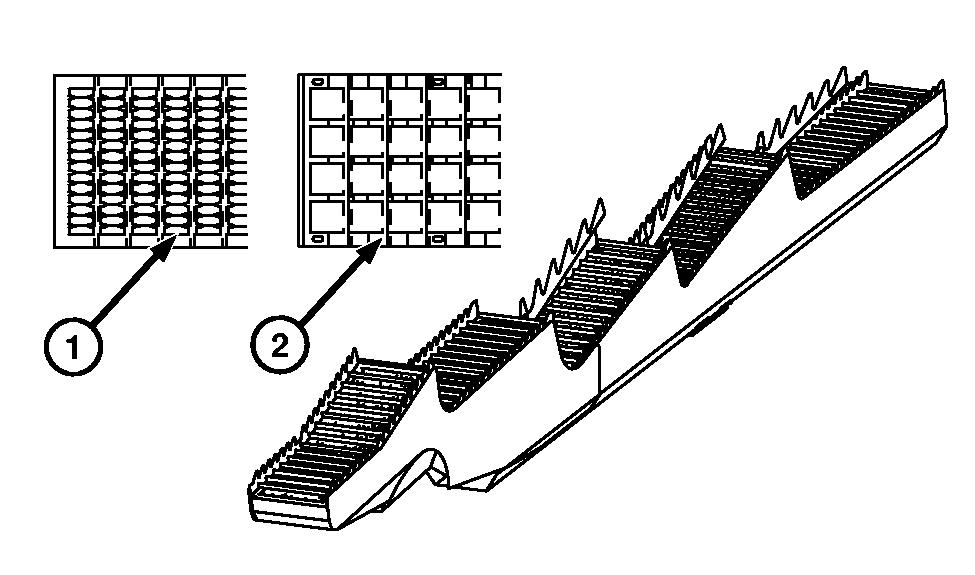

1. Standard cleaning shoe with longtitudinal openings. All stages are equipped with this cleaning shoe in factory.
2. CCM type cleaning shoes. This cleaning shoe increases straw walker flow and may be installed to third and forth stage.

Third and forth stage cleaning shoes are attached with bolts and may be replaced for fast conversion for different kinds of products.

AS60558,0000E12 -19-13FEB08-1/1
