Straw Walker Fishbacks - Type B

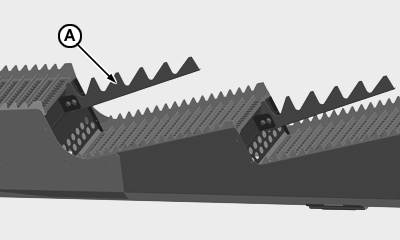

Fishbacks (A) optimize loose grain separation from chaff by increasing or reducing the speed at which straw moves over the straw walkers. Each straw walker has three fishbacks.

Fishbacks may be adjusted to obtain higher or lower inclination to allow for optimized separation of grain and straw according to harvesting conditions.

AS60558,0000E13 -19-13FEB08-1/1
