Straw Distributor-Setting to Transport and Operating Position

Transport Position

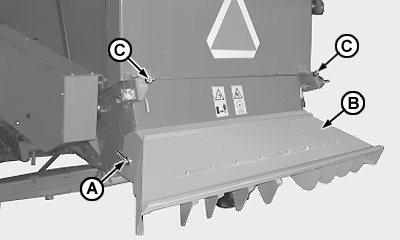

1. Release locks (A) on both sides of combine and remove straw distributor (B).

2. Remove wing nut, flat washer and rubber washer from bolts (C).

3. Position straw distributor (B) on brackets (D) and attach through bolts (C) with a rubber washer, flat washer and wing nut.

Operating Position

1. Set straw distributor to operating position by reverse procedure.

CQ269000
CQ269030

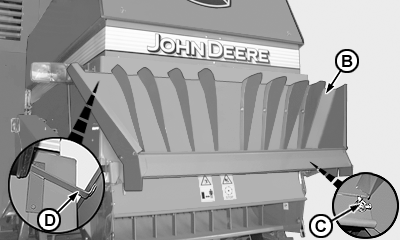

Transport position
