Replacing Thermostat

causym CAUTION: Danger of scalding! Before replacing the thermostat, release system pressure by turning expansion tank cap to first stop.

IMPORTANT: See your John Deere dealer to execute this job.

If engine is overheating very frequently, the thermostat may be damaged.

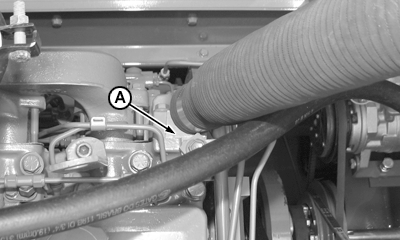

NOTE: When thermostat (A) is replaced it is also necessary to replace coolant.

CQ247690

ML70882,0000862 -19-24SEP05-1/1
