Mounting Air Filter Components

1. Mount filter and internal insert, ensuring that nuts are tightened.

NOTE: Nuts are sufficiently tight when both filter insert and internal insert do not move when you try to turn them by hand.


2. Close housing.

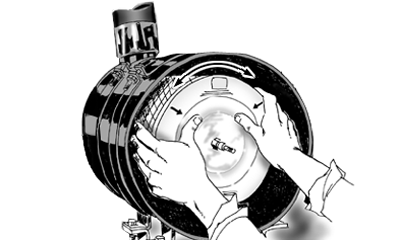

CQ220770

Mounting filter insert

ML70882,0000864 -19-21SEP05-1/1
