Steering Column Lock Pedal

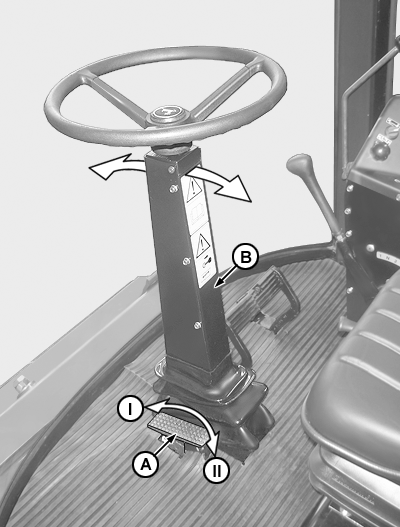

Unlock steering column (B) pressing pedal (A) into position (I).

Select desired position and lock steering column (B) pressing pedal (A) into position (II).

IMPORTANT: Always operate combine with steering column locked.

OU64006,000007D -19-31JAN06-1/1
