Threshing Unit Drive Engage Lever

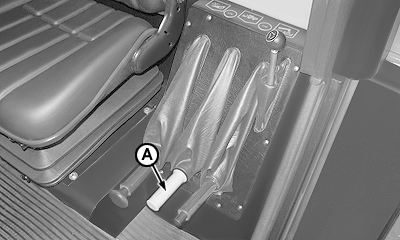

Lever (A) engages drive of threshing unit.

IMPORTANT: Only engage threshing system with combine at low speed to prevent excessive wear of transmission belt.

NOTE: Keep threshing system disengaged while combine is not operating.

OU64006,0000087 -19-05APR06-1/1
