Header Transmission Engage Lever

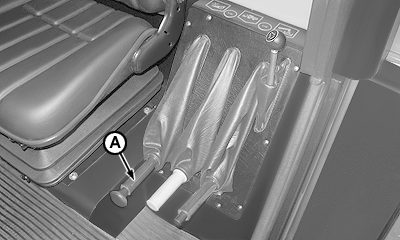

Lever (A) engages header transmission if installed. Lower lever to disengage.

IMPORTANT: Only engage header with combine at low speed.

Lever (A) has an emergency button. Press button at end of lever to switch off header.
