Concave Clearance Adjustment Lever

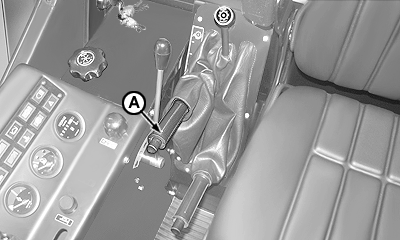

Through lever (A), clearance between concave and cylinder may be adjusted. The numbered scale located next to the lever represents approximate clearance in millimeters (mm) between concave and threshing cylinder.

Increase clearance - lever (A) down.

Decrease clearance - lever (A) up. To unlock it, press button at end of lever.

OU64006,000008B -19-29MAY06-1/1
