Hydrostatic System Oil

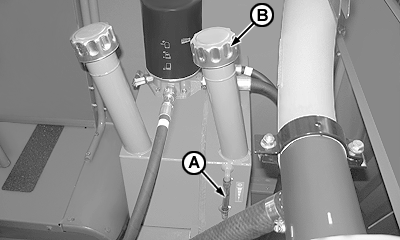

Check oil level at sight glass (A). Oil level must be at center of sight-glass (A). If necessary, top up with recommended oil through cap (B).

Recommended oil: HY-GARD ™

HY-GARD is a registered trademark of the Deere & Company

OU64006,000009A -19-21SEP05-1/1
