Indicator Lights
|
|

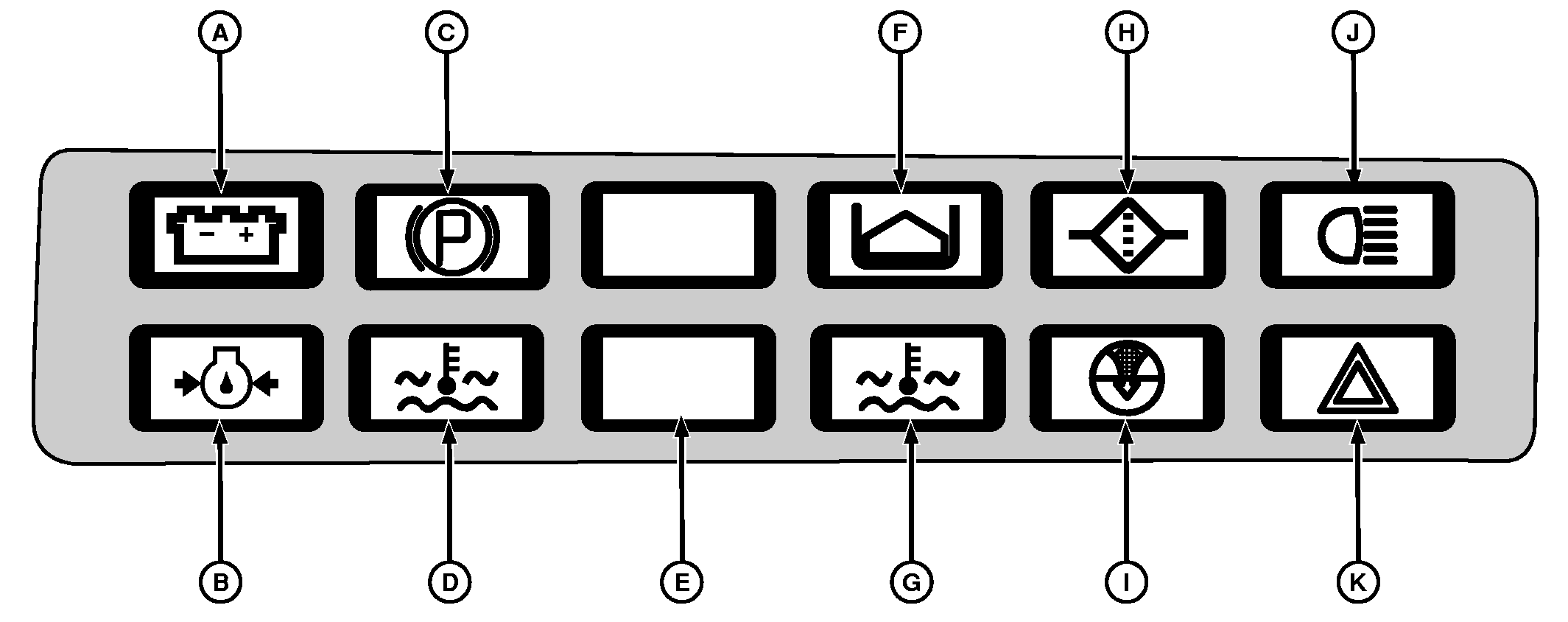

Indicator lights are monitoring combine functions. Priority of indicator lights varies from 1 to 11 (1 - highest, 11 - lowest). NOTE: Alternator and engine oil pressure indicator lights should light up when starter key is in first position, they should switch off at engine start-up. |
NOTE: If one of these lights should not go out, shut off engine immediately and resolve problem. IMPORTANT: Five of these indicator lights will produce an acoustic alarm when lighting up to inform the operator of a problem related to the respective function's operation. |
| Item | Indicator Lights | Priority | Color | Acoustic alarm |
| A | Alternator | 3 | Red | Yes |
| B | Engine oil pressure | 2 | Red | Yes |
| C | Parking brake | 4 | Red | Yes |
| D | Hydrostatic drive oil temperature | 6 | Red | - |
| E | Multi-function control handle in neutral | 9 | Green | - |
| F | Grain tank 3/4 full | 5 | Red | Yes |
| G | Engine coolant temperature | 1 | Red | Yes |
| H | Hydraulic oil filter restriction | 7 | Yellow | - |
| I | Air filter restriction | 8 | Yellow | - |
| J | Headlights full-beam | 11 | Blue | - |
| K | Hazard warning lights | 10 | Red | - |
