Shutting Off the Engine

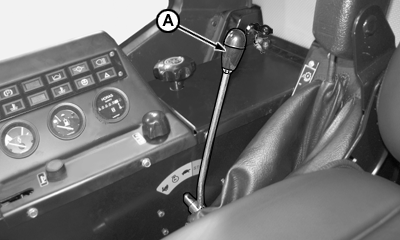

Multi-function control handle

Move multi-function control handle (A) to neutral position.

OU64006,00000A0 -19-25AUG06-1/3

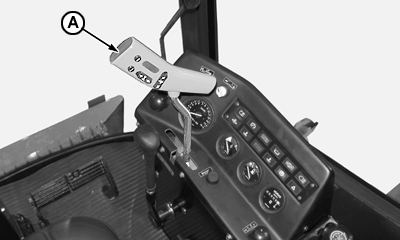

Throttle

Move throttle (A) to slow engine speed position (tortoise).

OU64006,00000A0 -19-25AUG06-2/3

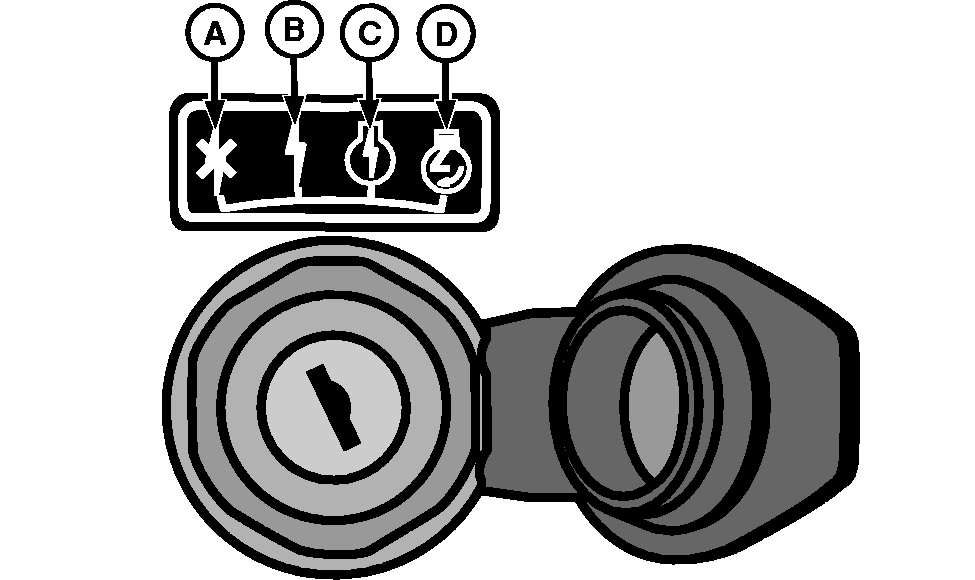

Starter Switch

IMPORTANT: Before finally shutting off engine, run at slow idle for 1-2 minutes to allow engine to cool down properly.

Turn starter key to position (B) and remove it. Engage parking brake.

IMPORTANT: Always remove key before leaving operator's station.

OU64006,00000A0 -19-25AUG06-3/3
