Main and Starter Key

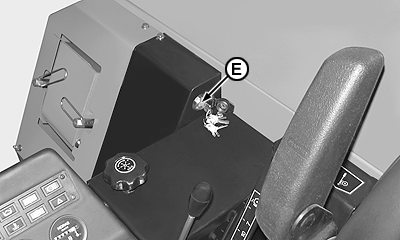

Main starter key (E) has four positions.

POSITION A and C: All electrical circuits are ON. Indicator lights are ON.

POSITION B: Neutral key position.

POSITION D: Engages engine starter motor (cranking) and starts the combine's engine.

CAUTION: Do not force the key in position (D) after the engine has started. This may damage the starter motor.

NOTE: If the key is not in place, plug opening with its rubber cover.
